Coil, Ignition: Installation: Installation

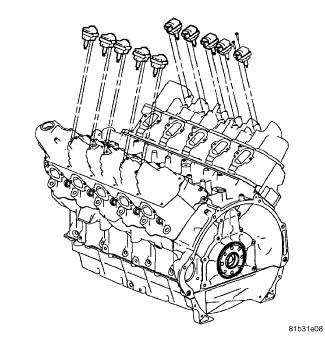

Fig 1: Identifying Ignition Coils

Courtesy of CHRYSLER GROUP, LLC

1. Install the ignition coil to the valve cover. Tighten bolts to 5 N.m (44 in. lbs.).
2. Connect and lock the electrical connector at the ignition coil.
   Fig 2: View Of Spark Plug Wires

   Courtesy of CHRYSLER GROUP, LLC
3. Install the ignition cable to ignition coil.

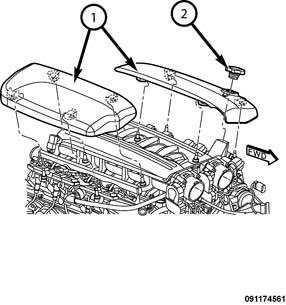

   Fig 3: Engine Covers

   Courtesy of CHRYSLER GROUP, LLC
4. Install the engine covers (1).

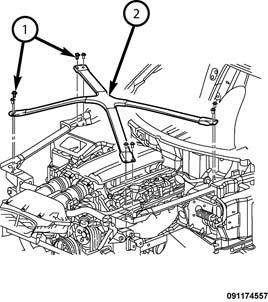

   Fig 4: Cross Support Brace & Bolts

   Courtesy of CHRYSLER GROUP, LLC
5. Install the cross brace (2). Tighten the bolts (1) to 20 N.m (15 ft. lbs.).
   Fig 5: Identifying IBS, Electrical Connector, (-) Battery Post, Cable Nut & Cable

   Courtesy of CHRYSLER GROUP, LLC
6. Connect the battery negative cable.
