U113E-Lost Communication With Intelligent Battery Sensor: Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .

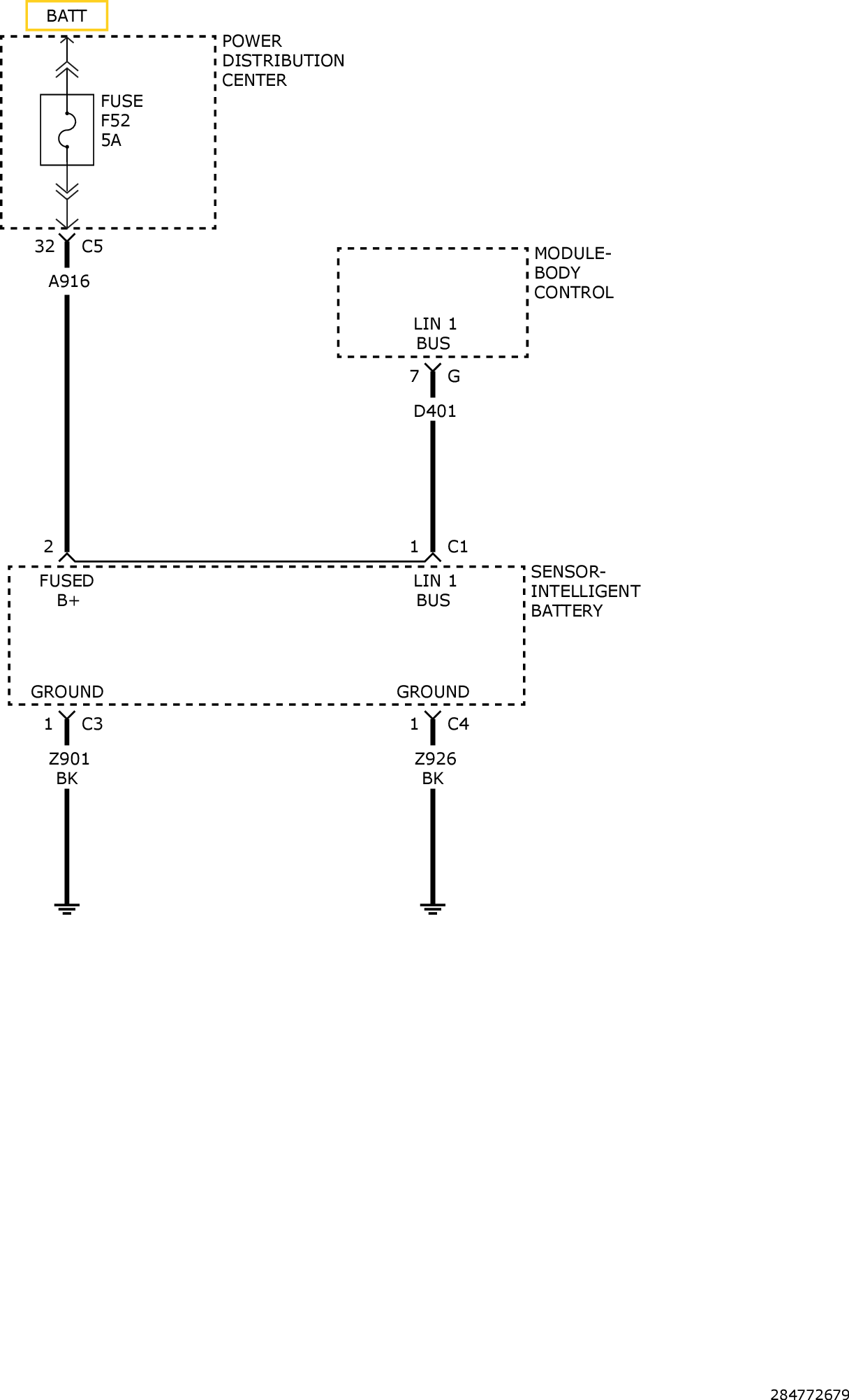

Fig 1: Intelligent Battery Sensor Circuit Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC
