Fan, Cooling: Installation: Gas

Fig 1: Electric Fan Connector & Clips
GC0145992Courtesy of CHRYSLER GROUP, LLC
  1. Position the radiator cooling fan (3) into mounts and attaching clips on the radiator. Press down to lock into place.
  2. Install the wire harness (1) onto the cooling fan.
  3. Connect the cooling fan wire harness connectors.
    Fig 2: Cooling Fan, Module & Upper Radiator Hose
    GC0147254Courtesy of CHRYSLER GROUP, LLC
  4. Install the upper radiator hose (3).

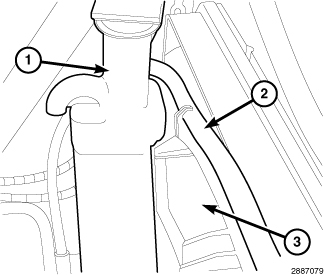

    Fig 3: Overflow Tubing & Overflow Bottle
    GC0147253Courtesy of CHRYSLER GROUP, LLC
  5. Install the coolant recovery bottle (3).
  6. Install the overflow tube (2).
  7. Connect the negative cable.
  8. Fill cooling system. Refer to STANDARD PROCEDURE .
