P050B-Cold Start Ignition Timing Performance: Notes

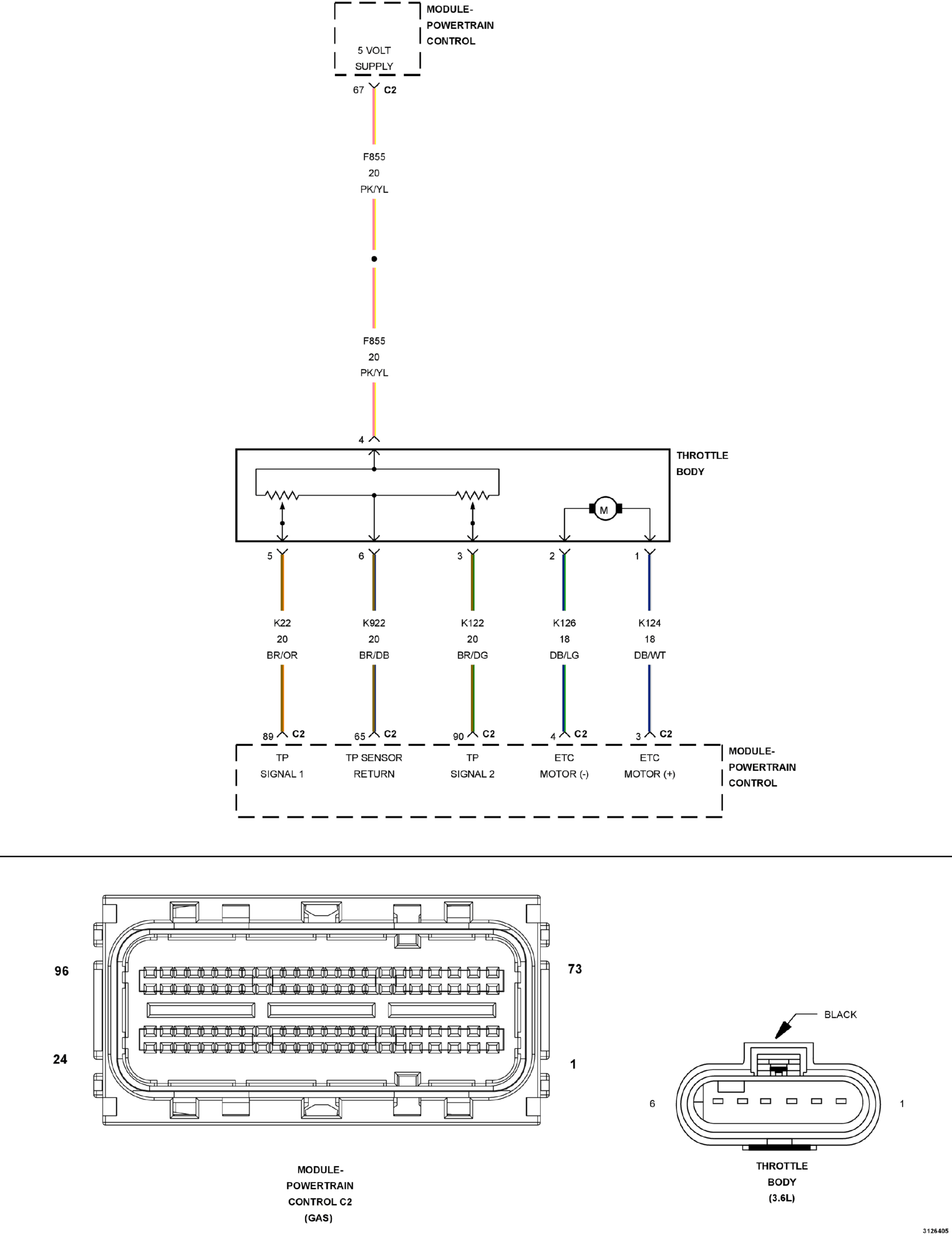

Fig 1: Throttle Body ETC Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
