Sensor, Air Temperature, Inlet: Installation: Installation

Fig 1: IAT Sensor O-Ring Seal

Courtesy of CHRYSLER GROUP, LLC

1. If necessary, inspect and replace the O-ring seal (1).

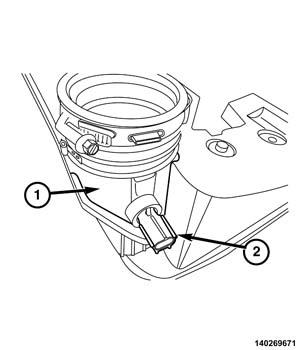

   Fig 2: Inlet Air Temperature Sensor

   Courtesy of CHRYSLER GROUP, LLC
2. Install the Inlet Air Temperature (IAT) sensor and rotate 1/4 turn to lock in place.
3. Install the air cleaner resonator. Refer to RESONATOR, AIR CLEANER, INSTALLATION, 2.0L or RESONATOR, AIR CLEANER, INSTALLATION, 2.4L .
4. Connect the negative battery cable.
