Module, Anti-Lock Brake System: Installation: Installation

Clean any debris off the mating surfaces of the HCU and ABM.
CAUTION:
When installing new O-rings or solenoid valve stem seals, do not use any type of lubricant.
New solenoid valve stems seals must be installed. Do not reuse solenoid valve stem seals.
Replace the pump/motor connector O-ring if it is not new. Be sure the O-ring is properly seated in the mounting groove.
Align components and install the ABM on the HCU.

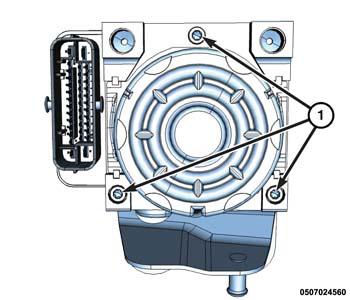

Fig 1: Identifying ABM To HCU Bolts
Courtesy of CHRYSLER GROUP, LLC
Install the bolts (1) attaching the ABM to the HCU. Tighten the mounting screws to specifications. Refer to SPECIFICATIONS .
Install the ICU into the vehicle. Refer to INTEGRATED CONTROL UNIT (ICU), INSTALLATION .
