P0748-Modulator Pressure Solenoid Circuit: Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .

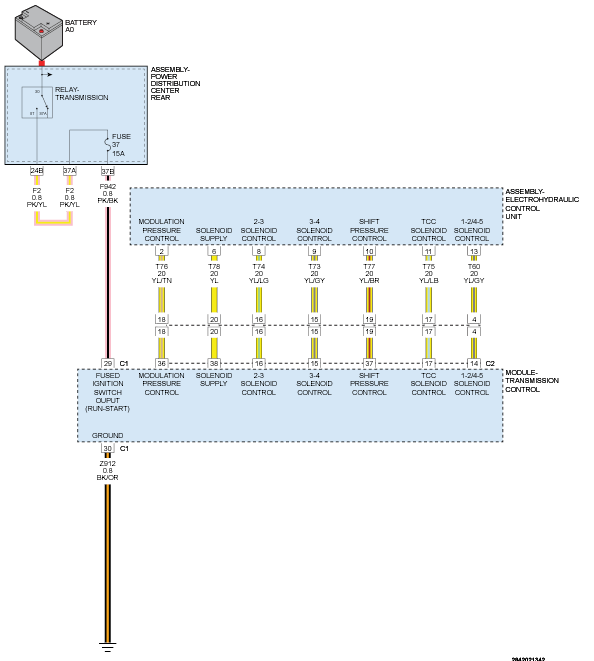

Fig 1: TCM Solenoid Control, Supply, Power & Ground Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
