Module, Totally Integrated Power (TIPM): Installation: Installation

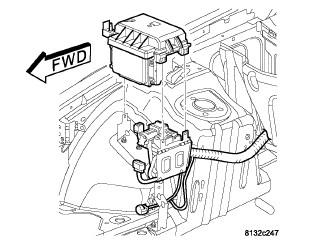

Fig 1: IPM Retaining Clips

Courtesy of CHRYSLER GROUP, LLC

CAUTION:

The original Cab Compartment Node (CCN) and Powertrain Control Module (PCM) must be installed and functioning properly prior to powering up the new Totally Integrated Power Module (TIPM). The TIPM receives vehicle configuration data from the CCN and Vehicle Identification Number information from the PCM. If configuration information becomes lost or corrupted, the data can be obtained from DealerCONNECT

Position Totally Integrated Power Module (TIPM) to vehicle. Engage the three retaining clips.

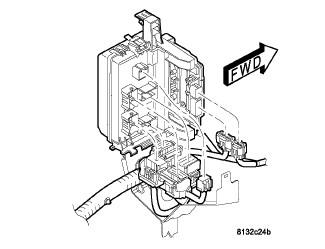

Fig 2: Integrated Power Module
Courtesy of CHRYSLER GROUP, LLC
Disengage the outboard retaining clip and rotate the TIPM to access wire harness connectors.
Connect electrical harness connectors to TIPM.

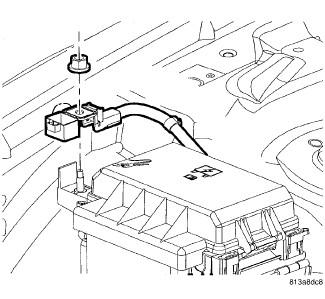

Fig 3: Disconnecting/Connecting Negative Battery Cable
Courtesy of CHRYSLER GROUP, LLC
Connect battery cable to TIPM. Tighten the nut to 20 - 28 N.m (15 - 21 ft. lbs.).
Close the battery cable nut cover.

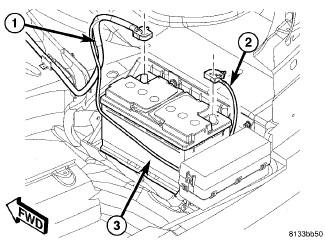

Fig 4: Disconnecting/Connecting Battery Cables
Courtesy of CHRYSLER GROUP, LLC
Connect negative battery cable (2).
Insert the ignition key and turn it to the RUNposition and wait twenty seconds. The TIPM will collect the necessary vehicle configuration and VIN data from the CCN and PCM at this time. After twenty seconds turn the ignition key to the OFFposition and then back to the ONposition and verify proper vehicle systems operation.
