Sensor, Coolant Temperature: Installation: 2.8L

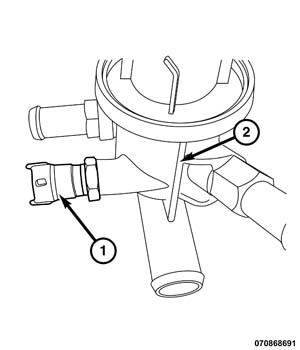

Fig 1: Coolant Temperature Sensor
GC0155045Courtesy of CHRYSLER GROUP, LLC
  1. Install the coolant temperature sensor (1). Tighten the coolant temperature sensor (1) to 14 N.m (124 in. lbs.).
    Fig 2: Thermostat Housing
    GC0145357Courtesy of CHRYSLER GROUP, LLC
  2. Install the thermostat housing (2). Refer to THERMOSTAT, INSTALLATION .
  3. Connect the negative battery cable.
