Pump, Air: Description: Description

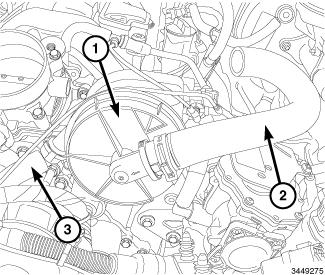

The air injection pump (1) is located in the rear of the engine compartment on partial zero emission vehicles (PZEV). The pump is operated by an internal electrical motor and is mounted to a bracket by rubber isolators. An inlet air hose (3) and outlet connecting tube (2) are attached to the air pump. The air pump relay is also located on the pump mounting bracket.
