Power Distribution: Description: Description

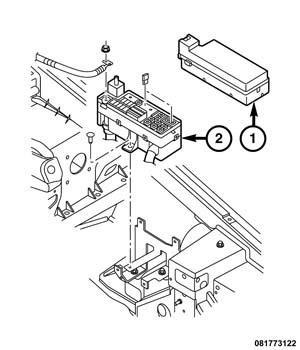

Fig 1: Identifying Power Distribution System Components

Courtesy of CHRYSLER GROUP, LLC

The power distribution systems incorporates various types of circuit control and protection features, including:

• Mini fuses
• Cartridge fuses
• Fusible link
• Relays (micro and ISO)

The power distribution system for this vehicle consists of the Power Distribution Center (PDC) located under the hood. For fuse location and types. Refer to FUSE LOCATIONS AND TYPES, SPECIFICATIONS .
