Sensor, Camshaft Position: Installation: Installation

Fig 1: View Of Camshaft Position Sensor

Courtesy of CHRYSLER GROUP, LLC

1. Carefully twist and push the camshaft position sensor (2) into the engine block (3) until seated.
2. Install the sensor mounting bolt (1) and tighten bolt to 6.2 N.m (55 in. lbs.).
   Fig 2: Identifying Sensor Electrical Connectors

   Courtesy of CHRYSLER GROUP, LLC
3. Connect the camshaft position sensor electrical connector (1).

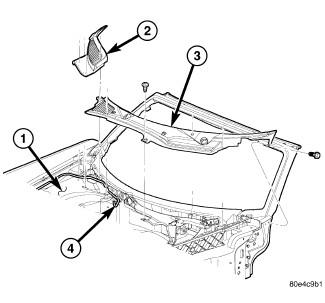

   Fig 3: Cowl Screen Panel

   Courtesy of CHRYSLER GROUP, LLC
4. Install the wiper cowl panel (3) Refer to COVER, COWL PANEL, INSTALLATION .
5. Connect the negative battery cable and tighten the nut to 5 N.m (44 in. lbs.).
