Plug, Glow: Installation: Installation

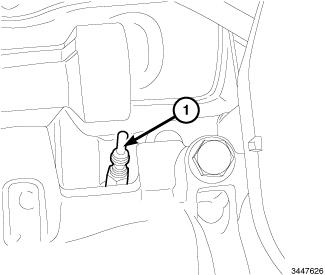

Fig 1: Glow Plug

Courtesy of CHRYSLER GROUP, LLC

1. Install glow plugs (1). Tighten glow plugs to 11 N.m (97 in. lbs.).

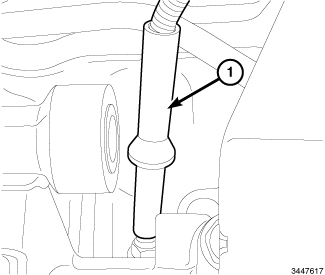

   Fig 2: Glow Plug Harness Connector

   Courtesy of CHRYSLER GROUP, LLC
2. Connect glow plug harness connector (1).
3. Install engine cover.
4. Connect the negative battery cable.
