P1C86-82-PRNDL Display-Alive/Sequence Counter Incorrect/Not Updated: Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .

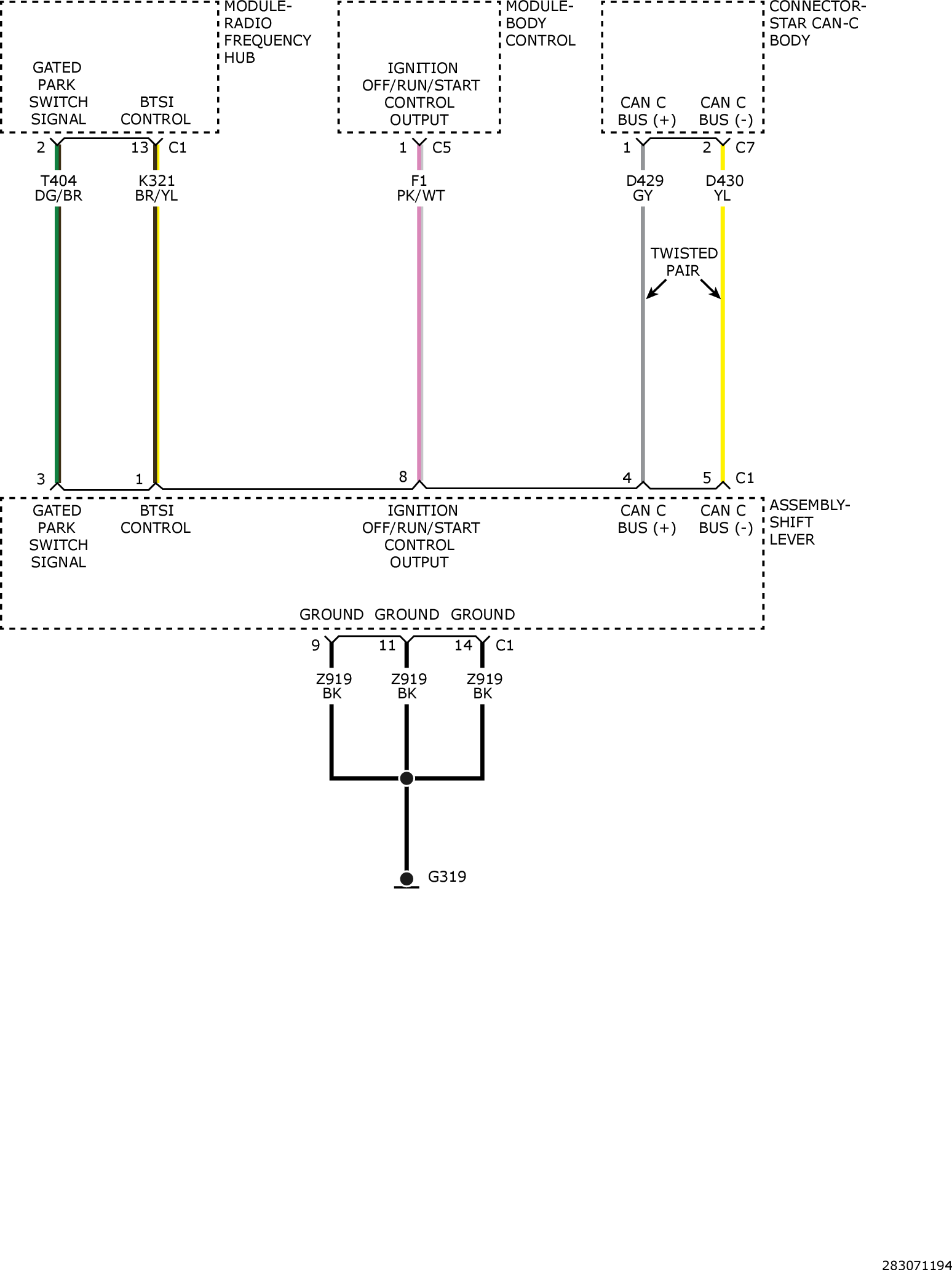

Fig 1: Electronic Shift Module Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
