Pressure System

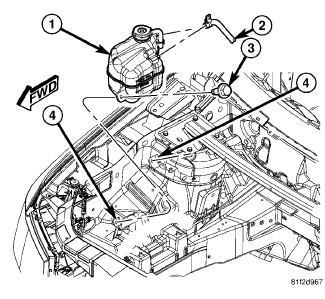

Fig 1: Coolant Recover Container - Pressure System

Courtesy of CHRYSLER GROUP, LLC

1 - COOLANT RECOVERY CONTAINER - PRESSURE SYSTEM

2 - SUPPLY HOSE

3 - MOUNTING BOLT

4 - COOLANT RECOVERY CONTAINER MOUNTING TABS

The coolant pressure container consists of a pressure chamber and a overflow chamber. The coolant pressure container is mounted in the right side engine compartment.

NOTE:

Coolant will normally be in the pressure chamber side of the coolant bottle. The overflow chamber should normally be empty
