Radiator, Engine Cooling: Installation: 2.4L/3.6L

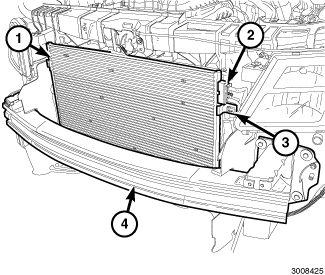

Fig 1: A/C Condenser & Radiator

Courtesy of CHRYSLER GROUP, LLC

CAUTION:

Use care when using force to merge the condenser to the radiator. Damage may occur to the clips on the radiator and the mounting tabs on the condenser.

Position A/C condenser (2) onto the radiator (1). Carefully align the slots on the condenser to the retainers on the radiator. Gently squeeze together until the retainers snap into place.

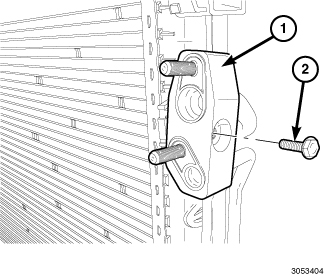

Fig 2: Bolt
Courtesy of CHRYSLER GROUP, LLC
Install the bolt that mounts the condenser to the radiator. Tighten the bolt securely.

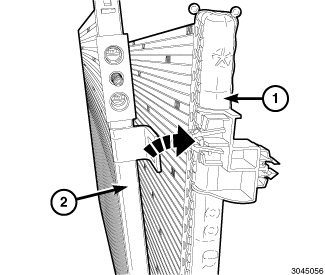

Fig 3: Lower Mounts
Courtesy of CHRYSLER GROUP, LLC
Slide radiator/condenser into position and seat the radiator assembly lower rubber isolators in the lower mounts (2).

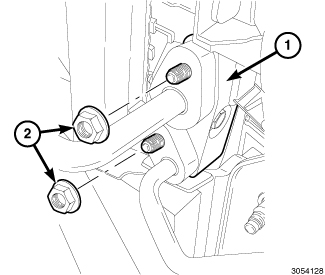

Fig 4: Trans Cooler Lines
Courtesy of CHRYSLER GROUP, LLC
Install the trans cooler lines (2). to the A/C condenser (1). Tighten nut to 8 N.M (70in.lbs.)
Align the radiator retainers to the core support radiator mounting tabs. Using pressure. Press the radiator into the core support.

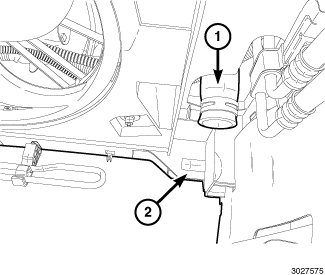

Fig 5: A/C Line Nuts & A/C Condenser
Courtesy of CHRYSLER GROUP, LLC
Install the A/C lines to the condenser. Tighten the nuts to 20 N.m (15 ft. lbs.).
Install the lower radiator hose at the radiator.
Install the upper radiator hose.
Fill the cooling system. Refer to STANDARD PROCEDURE .
Charge the A/C system. Refer to PLUMBING, FRONT, STANDARD PROCEDURE .

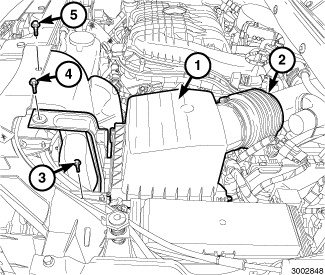

Fig 6: Air Filter Box Assembly
Courtesy of CHRYSLER GROUP, LLC
Install the air filter housing. Refer to BODY, AIR CLEANER, INSTALLATION or BODY, AIR CLEANER, INSTALLATION
Install the engine cover.

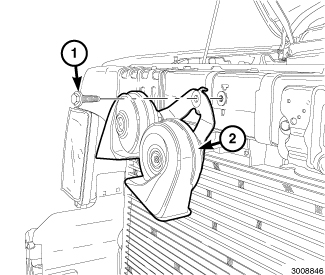

Fig 7: Bolt & Horn Assembly
Courtesy of CHRYSLER GROUP, LLC
Install the horn assembly (2). Tighten the bolt (1) to 8 N.M (70in.lbs.)
Install the front bumper fascia. Refer to FASCIA, FRONT, INSTALLATION .
Fill the cooling system. Refer to STANDARD PROCEDURE .
Connect the negative battery cable.
