Rear Switch Assembly

NOTE:

Some interior trim packages may make switch removal difficult by traditional means, and require interior trim panel removal to service the switch assembly.

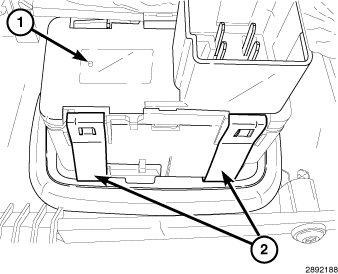

Fig 1: Four Clips & Switch

Courtesy of CHRYSLER GROUP, LLC

Install the switch (1) in the trim panel engaging the four clips (2) that secure the switch.
Position the trim panel close enough to the door and connect the electrical connector.
Install the rear door interior trim panel. Refer to PANEL, REAR DOOR TRIM, INSTALLATION .
