Sensor, Air Temperature, Intake: Installation: Installation

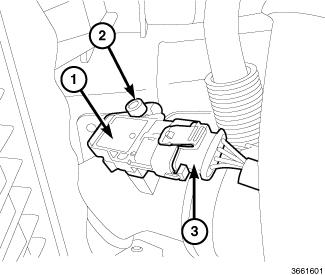

Fig 1: Intake Manifold Air Temperature Sensor, Bolt & Connector

Courtesy of CHRYSLER GROUP, LLC

1. Check condition of sensor O-ring and clean the IAT/MAP sensor mounting area.
2. Lubricate O-ring seal.
3. Install the IAT/MAP sensor (1) and securely tighten the bolt (2).
4. Connect IAT/MAP sensor wire harness connector (3).
5. Connect the negative battery cable.
