Spring, Front Coil: Removal: Removal

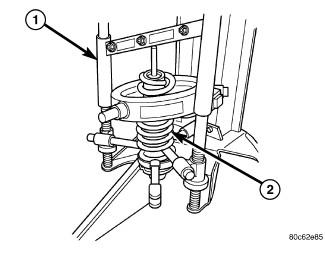

Fig 1: Compressing Spring
GC0117761Courtesy of CHRYSLER GROUP, LLC
1 - SPRING COMPRESSOR
2 - SPRING
  1. Remove the shock. Refer to SHOCK ABSORBER, SUSPENSION, REMOVAL .
  2. Install the shock assembly in the Branick 7200® spring removal/installation tool or equivalent (1).
  3. Compress the spring (2).

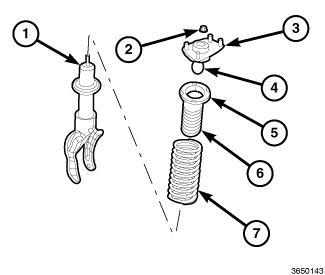

    Fig 2: Upper Shock Mount & Shock Assembly
    GC0153823Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    The orientation of the upper shock mount (3) in relation to the lower portion of the shock assembly (1) must be maintained during assembly.

  4. Remove the upper shock nut (2).
  5. Remove the shock assembly (1).
  6. Remove and inspect the following components for replacement:
