Module, Totally Integrated Power (TIPM): Removal: Removal

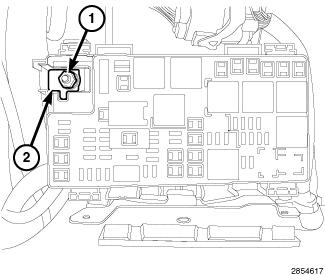

Fig 1: B+ Retainer & B+ Cable

Courtesy of CHRYSLER GROUP, LLC

1. Disconnect and isolate the negative battery cable.
2. Open the cover of the Totally Integrated Power Module (TIPM).
3. Remove the B+ retainer (1).
4. Remove the B+ cable from the TIPM.

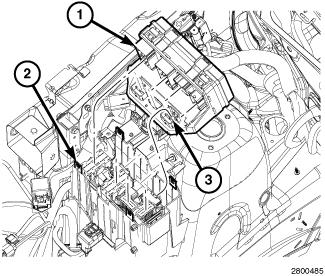

   Fig 2: TIPM & Tabs

   Courtesy of CHRYSLER GROUP, LLC
5. Unclip the TIPM (1) from the mounting bracket (2).
6. Disconnect the electrical connectors from the TIPM and remove.
