Sensor, Active Damping: Installation: Rear

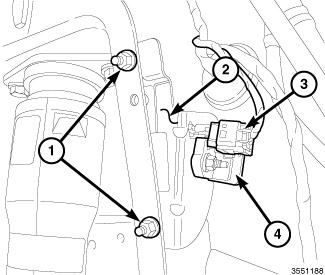

Fig 1: Wiring Harness Connector, Two Mounting Nuts & ADS Bracket
GC0152135Courtesy of CHRYSLER GROUP, LLC
  1. Install the bracket (2) and place the studs through the holes in the rear shock tower.
  2. Install the mounting nuts (1) and tighten to 9 N.m (60 in. lbs.).
  3. Connect the wiring harness connector (3) to the Active Damping Suspension (ADS) sensor (4) and seat the terminal locking tab.
