Knuckle, Steering: Disassembly: Disassembly

NOTE:

To perform this procedure, it works best to mount Ball Joint Press (special tool #C-4212F, Press, Ball Joint) in a vise.

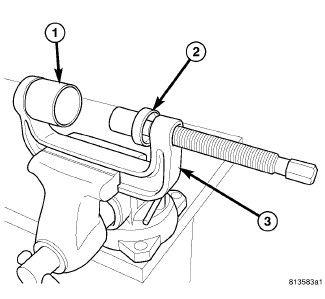

Fig 1: Tools Assembled For Ball Joint Removal
GC0079699Courtesy of CHRYSLER GROUP, LLC
  1. Place Ball Joint Remover/Installer (special tool #9320, Remover/Installer, Ball Joint) (1) into cup area of Ball Joint Press (special tool #C-4212F, Press, Ball Joint) (3) as shown in illustration and tighten set screw.
  2. Place Ball Joint Remover/Installer (special tool #9320-3, Remover, Ball Joint) (2) onto end of screw-drive of Ball Joint Press (special tool #C-4212F, Press, Ball Joint) (3) as shown in illustration.

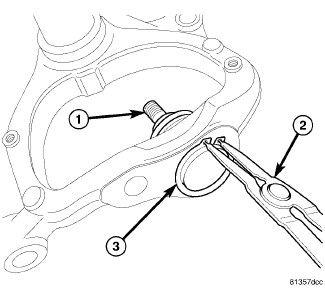

    Fig 2: Ball Joint Snap Ring
    GC0079700Courtesy of CHRYSLER GROUP, LLC
  3. Using a pair of snap-ring pliers (2), remove snap-ring (3) from bottom of ball joint (1).

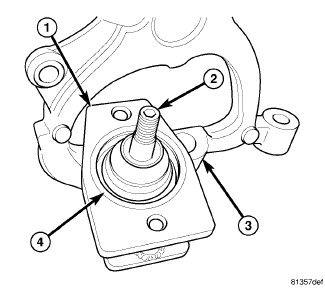

    Fig 3: Support Clamp Positioned Over Ball Joint
    GC0079701Courtesy of CHRYSLER GROUP, LLC
  4. Install halves of Support Clamp (1), Ball Joint Remover/Installer (special tool #9320-1, Plate, Ball Joint Remover) (2) over ball joint (2) and around knuckle surface (3) as shown in illustration. Install and snug Support Clamp (1) screws from underside.

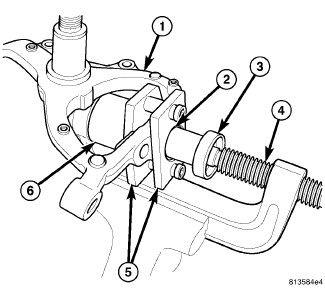

    Fig 4: Tools Positioned For Ball Joint Removal
    GC0079702Courtesy of CHRYSLER GROUP, LLC
  5. Position knuckle (1) over tools guiding top of ball joint inside of Receiver (6), then hand tighten Press screw-drive (4) until Remover (3) comes into contact with bottom of ball joint (2).
    Fig 5: Support Clamp Positioned Over Ball Joint
    GC0079701Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    When positioning knuckle over tools, make sure Receiver, Ball Joint Remover/Installer (special tool #9320-5, Receiver Cup), sets into recessed area (4) of Support Clamp, Ball Joint Remover/Installer (special tool #9320-1, Plate, Ball Joint Remover).

    Fig 6: Tools Positioned For Ball Joint Removal
    GC0079702Courtesy of CHRYSLER GROUP, LLC
  6. Tighten Press screw-drive (4) forcing ball joint out of knuckle (1) and into Receiver (6).
  7. Loosen screw-drive (4) and remove knuckle (1) from Press. Remove ball joint from Receiver (6).
    Fig 7: Support Clamp Positioned Over Ball Joint
    GC0079701Courtesy of CHRYSLER GROUP, LLC
  8. Remove Support Clamp (1) from knuckle (3).
