Tank, Fuel: Installation: Installation

WARNING:

No sparks, open flames or smoking. Risk of poisoning from inhaling and swallowing fuel. Pour fuel only into appropriately marked OSHA approved containers. Wear protective clothing. Risk of injury to eyes and skin from contact with fuel.

Fig 1: Tank Straps

Courtesy of CHRYSLER GROUP, LLC

If removed, install the fuel pump modules. Refer to MODULE, FUEL PUMP, INSTALLATION .
Using a suitable hydraulic jack with a fuel tank adapter, support the fuel tank.
Carefully raise the fuel tank into position while guiding the ORVR vent line through bracket.
Position the fuel tank support straps.
Install fuel tank support strap retaining bolts and tighten to 27 N.m (20 ft. lbs.).

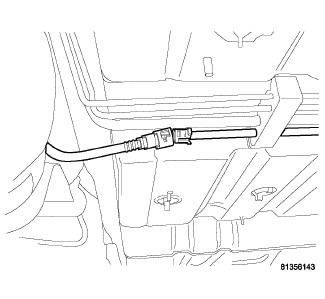

Fig 2: Fuel Line Disconnected
Courtesy of CHRYSLER GROUP, LLC
Connect the fuel supply line.

Fig 3: Vapor Connection On Tank
Courtesy of CHRYSLER GROUP, LLC
Connect the vapor line.

Fig 4: EVAP Line
Courtesy of CHRYSLER GROUP, LLC
Connect the EVAP line in the right rear wheel well.

Fig 5: Heat Shield
Courtesy of CHRYSLER GROUP, LLC
Position the heat shield (1) and install the heat shield retainers (2).
Install the propeller shaft. Refer to INSTALLATION .

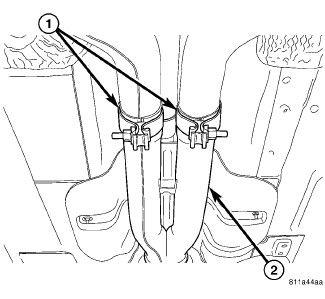

Fig 6: Identifying Clamps & Rear Exhaust System
Courtesy of CHRYSLER GROUP, LLC
Install the muffler and tailpipe assembly (2). Refer to MUFFLER, EXHAUST, INSTALLATION .

Fig 7: Remove/Install Filler Tube
Courtesy of CHRYSLER GROUP, LLC
Connect the fuel filler tube to the rubber hose on the fuel tank.

Fig 8: Filler Tube Clamp Removed
Courtesy of CHRYSLER GROUP, LLC
Install the hose clamp to the rubber hose connecting the fuel filler tube to the fuel tank and tighten the clamp to 4 N.m (35 in. lbs.).

Fig 9: Filler Tube Mounting Screw
Courtesy of CHRYSLER GROUP, LLC
Connect the ORVR vent line (2).
Install the fuel filler tube retaining bolt (1) and tighten to 7 N.m (62 in. lbs.).

Fig 10: Removing/Installing Rear Wheelhouse Shield
Courtesy of CHRYSLER GROUP, LLC
Position the left rear wheelhouse splash shield (2).
Install the push-pins (1) that secure the rear wheelhouse shield to the body.
Install the left rear tire.

Fig 11: Splash Shield DR Side
Courtesy of CHRYSLER GROUP, LLC
Install the left underbody splash shield (1).

Fig 12: Splash Shield PASS Side
Courtesy of CHRYSLER GROUP, LLC
Install the right underbody splash shield (1).
Lower the vehicle.

Fig 13: Negative Battery Cable
Courtesy of CHRYSLER GROUP, LLC
Fill the fuel tank.
Connect the negative battery cable (1).
Use the scan tool to pressurize the fuel system and check for leaks.
