Assembly, Variable Valve Timing: Installation: Installation

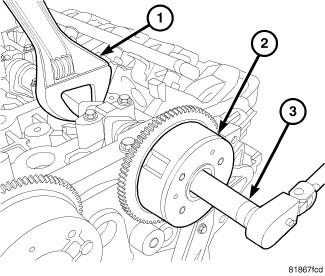

Fig 1: Removing/Installing Camshaft Phaser

Courtesy of CHRYSLER GROUP, LLC

CAUTION:

Do not use an impact wrench to tighten camshaft sprocket bolts. Damage to the camshaft-to-sprocket locating dowel pin and camshaft phaser may occur.

Install phaser (2) assembly on camshaft.
NOTE:
Make sure the dowel is seated in the dowel hole and not in an oil feed hole. The dowel hole is larger than the 4 oil feed holes.
Install phaser retaining bolt. Hold camshaft in place with a wrench (1) and tighten bolt to 59 N.m (44 ft. lbs.).
Install camshafts. Refer to CAMSHAFT, ENGINE, INSTALLATION .
