Diagnostic Test

CHECK FOR OTHER DTCS
1. Turn the ignition on.
2. With the scan tool, check for additional DTCs.
  Are other DTCs present?

  Yes
  - Perform the diagnostics for the other DTCs before continuing.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .
  No
  - Go To 2.
CLEAR CODE AND CHECK IF THE DTC RESETS
1. With the scan tool, erase PCM DTCs.
2. Perform several ignition key cycles, pausing for at least 10 seconds between each cycle.
3. Turn the ignition on.
4. With the scan tool, read PCM DTCs.
  Did this DTC Return?

  Yes
  - Go To 3.
  No
  - Perform the INTERMITTENT CONDITION diagnostic procedure. Refer to INTERMITTENT CONDITION .
SUBSTITUTE THE ASD RELAY
1. Turn the ignition off.
2. Install a known good relay in place of the ASD Relay.
3. Turn the ignition on.
4. With the scan tool, erase PCM DTCs.
5. Perform several ignition key cycles, pausing for at least 10.0 seconds between each cycle.
6. Turn the ignition on.
7. With the scan tool, read PCM DTCs.
  Did this DTC return?

  Yes
  - Go To 4.
  No
  - Replace the ASD Relay in accordance with the service information.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .
CHECK PCM POWER AND GROUNDS
1. Using the wiring information, check the PCM battery, ignition feed and ground circuits.
  Were any problem found with the PCM powers and grounds?

  Yes
  - Repair as necessary.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .
  No
  - Go To 5.
CHECK THE (K51) ASD RELAY CONTROL CIRCUIT FOR A SHORT TO VOLTAGE

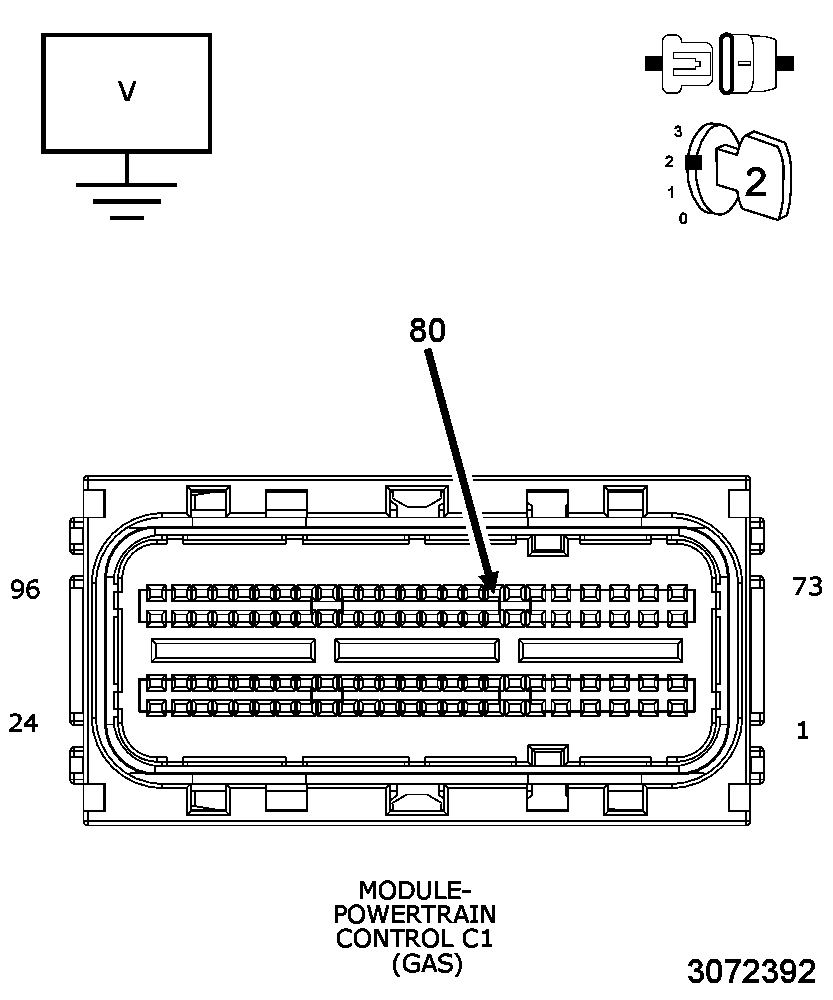

Fig 1: Checking ASD Relay Control Circuit For A Short To Voltage
Courtesy of CHRYSLER GROUP, LLC
1. Reconnect the PCM harness connectors.
2. Turn the ignition off.
3. Remove the ASD Relay.
4. Turn the ignition on.
5. Measure the voltage an the (K51) ASD Relay Control circuit at terminal 85 of the ASD Relay connector.
  Is there any voltage present?

  Yes
  - Repair the (K51) ASD Relay Control circuit for a short to voltage.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .
  No
  - Go To 6.
CHECK THE (K51) ASD RELAY CONTROL CIRCUIT FOR A SHORT TO GROUND

Fig 2: Checking ASD Relay Control Circuit For A Short To Ground
Courtesy of CHRYSLER GROUP, LLC
1. Turn the ignition off.
2. Remove the ASD Relay.
3. Disconnect the PCM C1 harness connector.
4. Measure the resistance an the (K51) ASD Relay Control circuit at terminal 85 of the ASD Relay connector.
  Is the resistance above 10k Ohms?

  Yes
  - Go To 7.
  No
  - Repair the (K51) ASD Relay Control circuit for a short to ground.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .
CHECK THE (K51) ASD RELAY CONTROL CIRCUIT FOR AN OPEN/HIGH RESISTANCE

Fig 3: Checking ASD Relay Control Circuit For Open Or High Resistance
Courtesy of CHRYSLER GROUP, LLC
1. Measure the resistance of the (K51) ASD Relay Control circuit between the PCM C1 harness connector and the ASD Relay connector.
  Is the resistance below 5.0 Ohms?

  Yes
  - Repair the ASD Relay Control circuit for an open or high resistance.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .
  No
  - Replace and program the Powertrain Control Module in accordance with the Service Information. Refer to MODULE, POWERTRAIN CONTROL, REMOVAL .
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .
