Heater, Engine Block: Installation: Installation

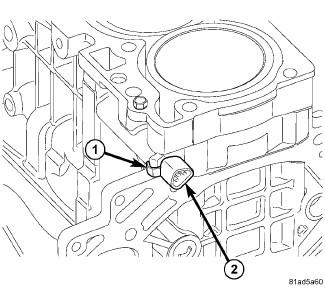

Fig 1: Block Heater 2.0/2.4L Engine

Courtesy of CHRYSLER GROUP, LLC

1 - RETAINING CLIP

2 - BLOCK HEATER

1. Thoroughly clean bore hole.
2. Insert block heater assembly into bore.
3. Install retaining clip.
4. Connect power cord to block heater.
   Fig 2: Air Cleaner Inlet

   Courtesy of CHRYSLER GROUP, LLC
5. Install air intake inlet.
6. Install engine cover.
