Sensor, Fuel Pressure: Installation: Installation

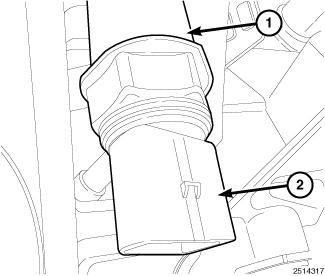

Fig 1: Fuel Rail & Fuel Rail Pressure Sensor

Courtesy of CHRYSLER GROUP, LLC

1. Install the fuel rail pressure sensor (2) onto fuel rail (1). Tighten sensor (2) to 35 N.m (26 ft. lbs.).
   Fig 2: Lock Tabs & Engine Wire Harness

   Courtesy of CHRYSLER GROUP, LLC
2. Position the wire harness (2) and push down to lock tabs (1).
   Fig 3: Fuel Rail Pressure Regulator Harness Connector

   Courtesy of CHRYSLER GROUP, LLC
3. Connect the fuel rail pressure sensor harness connector (2).
4. Connect the negative battery cable.
