Bottle, Coolant Recovery: Removal: Diesel

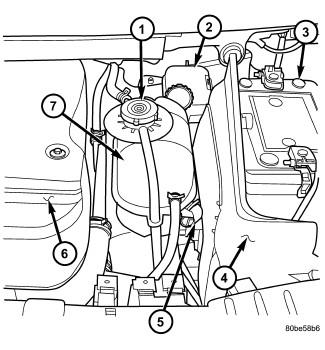

Fig 1: Coolant Recovery Bottle Container Assembly

Courtesy of CHRYSLER GROUP, LLC

1 - PRESSURE/VENT CAP

2 - BRAKE MASTER CYLINDER

3 - BATTERY

4 - BATTERY SHIELD

5 - COOLANT RECOVERY PRESSURE CONTAINER RETAINING CLIP

6 - ENGINE COVER

7 - COOLANT RECOVERY PRESSURE CONTAINER

Drain cooling system below level of coolant recovery pressure bottle. Refer to STANDARD PROCEDURE .
Disconnect coolant bypass and overflow hoses from coolant recovery pressure container. Refer to Fig 2.

Unclip the coolant recovery pressure container retaining clip. Refer to Fig 1.

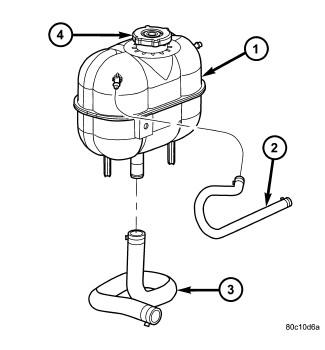

Fig 2: Coolant Recovery Pressure Container Assembly

Courtesy of CHRYSLER GROUP, LLC

1 - COOLANT RECOVERY PRESSURE CONTAINER

2 - COOLANT BYPASS HOSE

3 - OUTLET HOSE

4 - PRESSURE/VENT CAP

Raise coolant recovery pressure container from mounting bracket and disconnect coolant hose from bottom of container. Refer to Fig 2.
Remove coolant recovery pressure bottle.
