Bottle, Coolant Recovery: Installation: Gas

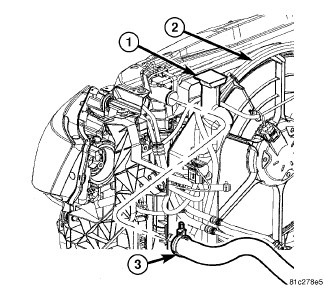

Fig 1: Coolant Recovery Container, Radiator Fan & Hose
GC0124531Courtesy of CHRYSLER GROUP, LLC
  1. Connect the recovery hose (2) to coolant recovery container (1).
  2. Position the recovery container on the fan shroud.
  3. Guide the recovery container in to the mounting slots and push down till the alignment pin locks into place.
  4. Add coolant to container as necessary. Refer to STANDARD PROCEDURE .
