Bottle, Coolant Recovery: Description: Diesel

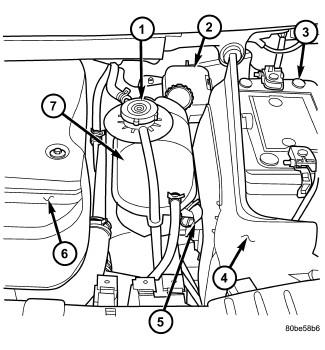

Fig 1: Coolant Recovery Bottle Container Assembly

Courtesy of CHRYSLER GROUP, LLC

1 - PRESSURE/VENT CAP

2 - BRAKE MASTER CYLINDER

3 - BATTERY

4 - BATTERY SHIELD

5 - COOLANT RECOVERY PRESSURE CONTAINER RETAINING CLIP

6 - ENGINE COVER

7 - COOLANT RECOVERY PRESSURE CONTAINER

The coolant recovery pressure container (7) is mounted in the engine compartment next to the battery. The coolant recovery pressure container (7) is made of plastic.
