Plug, Glow: Removal: Removal

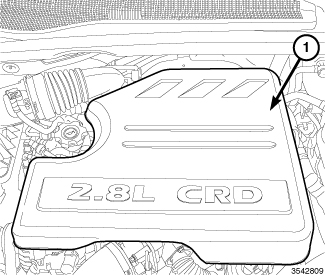

Fig 1: Engine Cover

Courtesy of CHRYSLER GROUP, LLC

Disconnect the negative battery cable.
Remove the engine cover (1).
Remove the fuel rail. Refer to RAIL, FUEL, REMOVAL or RAIL, FUEL, REMOVAL .

Fig 2: Glow Plugs & Wiring Harness
Courtesy of CHRYSLER GROUP, LLC
Disconnect glow plug wiring harness (2) at all four glow plugs (1).
CAUTION:
After plug removal, do not bend, knock, or drop the glow plugs while handling (any mechanical impact may damage the glow plug).
Use a socket to loosen all the glow plug(s) (1). After loosening, attach a flexible tool such as a rubber hose to remove glow plug from cylinder head.
