Tank, Fuel: Installation: Installation

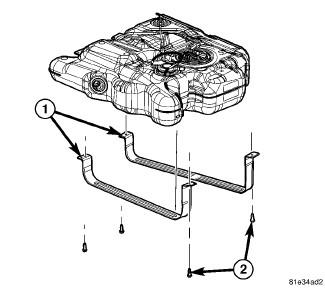

Fig 1: Identifying Fuel Tank Strap Bolts And Straps

Courtesy of CHRYSLER GROUP, LLC

WARNING:

Support fuel tank with a transmission jack or equivalent. Use straps to secure the fuel tank to the jack. Failure to properly support and secure the fuel tank during removal may cause fuel to spill or fuel tank to fall from jack assembly.

Raise the fuel tank.
Install the straps (1) and fuel tank. Tighten bolts (2) to 55 N.m (41 ft. lbs.).

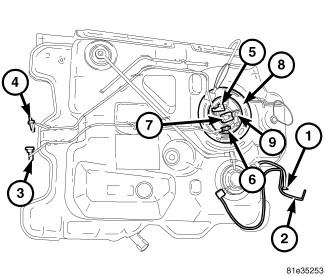

Fig 2: Identifying Fuel Pump Module
Courtesy of CHRYSLER GROUP, LLC
Connect fuel line quick connect fittings (3) and (4) evaporator hoses (1) and (2).

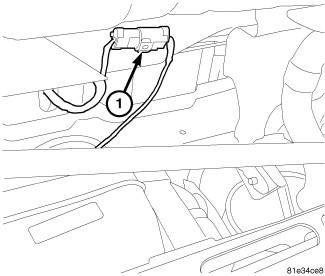

Fig 3: Identifying Fuel Pump Electrical Connector
Courtesy of CHRYSLER GROUP, LLC
Connect fuel pump wire harness connector (1).

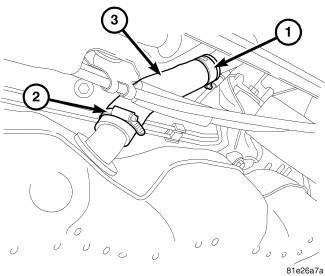

Fig 4: Identifying Fuel Fill Tube, Fuel Tank, And Hose Clamps
Courtesy of CHRYSLER GROUP, LLC
Connect the fuel fill hose to the fuel tank, and install the hose clamp.
Transfer fuel into the tank.
Connect the negative battery cable.
Turn the ignition on, and inspect for leaks.
