Sensor, Crankshaft Position: Installation: Installation

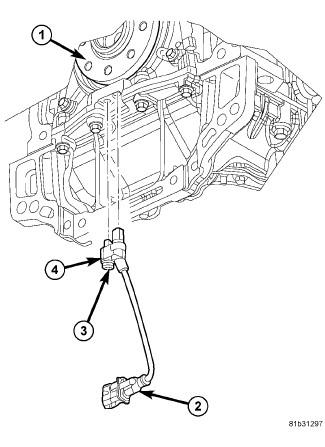

Fig 1: Identifying Crankshaft Hub, Electrical Connector, Mounting Bolt & CKP Sensor

Courtesy of CHRYSLER GROUP, LLC

CAUTION:

Before tightening the Crankshaft Position Sensor (CKP)sensor mounting bolt, be sure the sensor is completely flush to the cylinder block. If the CKP sensor is not flush, damage to the sensor mounting tang may result.

Install Crankshaft Position Sensor (CKP) sensor (4). Tighten bolt (3) to 11 N.m (97 in. lbs.).

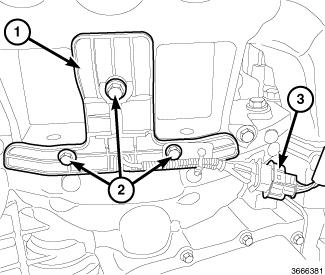

Fig 2: CKP Access Cover, Bolts & Crankshaft Position Sensor (CKP) Wire Harness Connector
Courtesy of CHRYSLER GROUP, LLC
Install CKP access cover (1). Tighten bolts (2) to 15 N.m (133 in. lbs.).
Connect CKP wire harness connector (3).

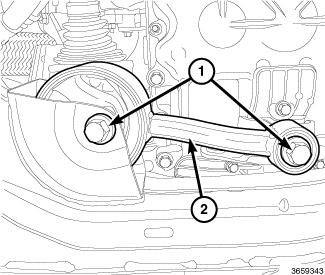

Fig 3: Lower Torque Strut & Bolts
Courtesy of CHRYSLER GROUP, LLC
Install the lower torque strut.
Connect the negative battery cable.
