Exhaust System: Description: Diesel

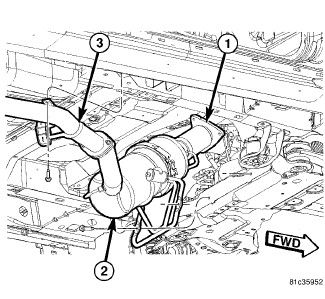

Fig 1: Diesel Oxidation Catalyst (Doc)/Diesel Particulate Filter (DPF) - 2.8L Diesel

Courtesy of CHRYSLER GROUP, LLC

1 - DOC/PDF TO TURBOCHARGER FLANGE

2 - DOC/DPF

3 - EXHAUST PIPE

The 2.8L Diesel exhaust system consists of a combination Diesel Oxidation Catalyst (DOC)/Diesel Particulate Filter (DPF), and a muffler and resonator assembly. The DOC/DPF is connected to the muffler and resonator by a band clamp at the muffler and resonator inlet pipe.
