Tray, Battery: Removal: Removal

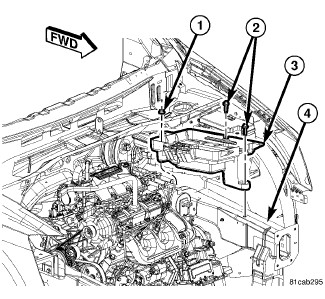

Fig 1: Identifying Bolts, Nut, Battery Tray And Frame Rail
GC0124615Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the battery negative cable.
  2. Remove the battery. Refer to BATTERY, REMOVAL .
  3. Remove the two bolts (2) and one nut (1) securing the battery tray (3) to the left frame rail (4).
  4. Lift the battery tray out of the engine compartment and remove from the vehicle.
