P0340-Camshaft Position Sensor Circuit: Notes

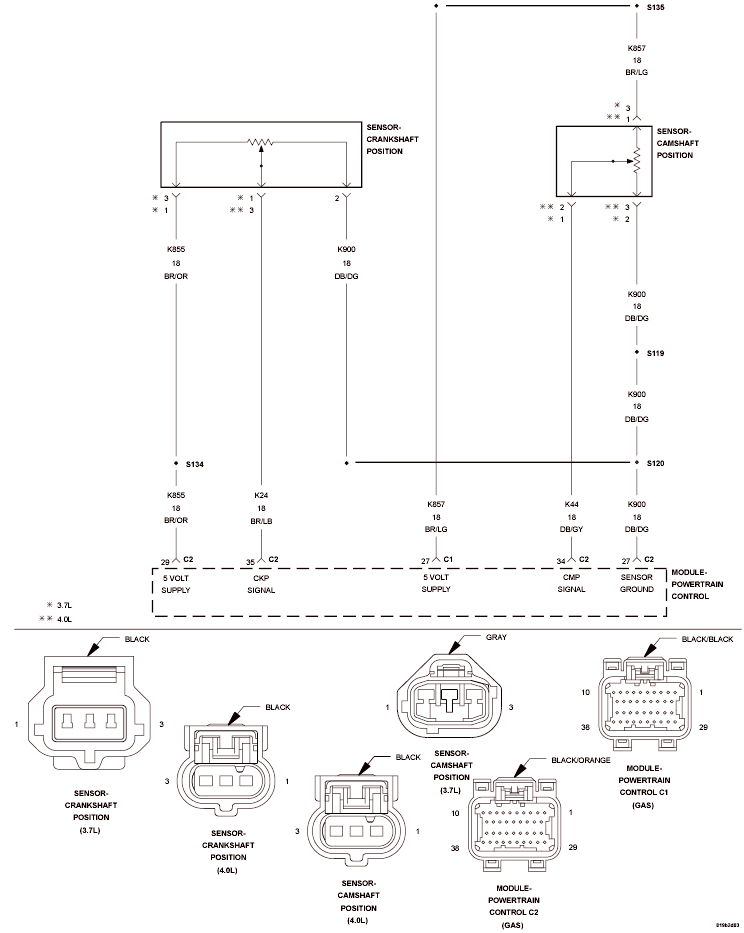

Fig 1: Camshaft Position Sensor & Crankshaft Position Sensor Circuit Schematic

Courtesy of CHRYSLER LLC

For a complete wiring diagram refer to appropriate SYSTEM WIRING DIAGRAMS article  .
