4.0L Engine
Courtesy of CHRYSLER LLC

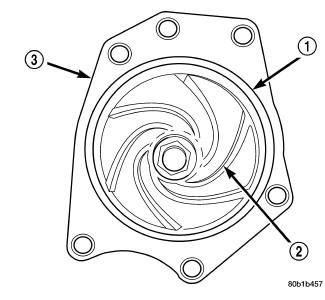

| 1 - O-RING |
| 2 - IMPELLER |
| 3 - WATER PUMP BODY |
The 4.0L water pump has a die cast aluminum housing and a plastic swept vane impeller. It bolts directly to the right rear timing belt cover using an O-ring for sealing. The water pump is driven by the engine timing belt.
