Steering System: Pump: Installation: 4.0L

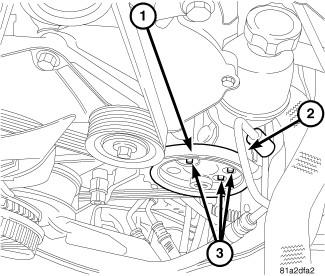

Fig 1: Identifying Power Steering Belt, Pressure Line & Power Steering Pump Mounting Bolts

Courtesy of CHRYSLER LLC

Install power steering pump back in engine compartment using reverse order of its removal.
Install three power steering pump mounting bolts (3) through pulley. Tighten pump mounting bolts to 28 N.m (21 ft. lbs.).
NOTE:
Before installing power steering pressure hose on power steering pump, replace O-ring on end of power steering pressure hose. Lubricate O-ring using clean power steering fluid.
Install pressure line (2) into pump. Thread pressure line tube nut into pump and tighten to 27 N.m (20 ft. lbs.).
Install return line into the reservoir.
Install power steering belt (1). Refer to BELT, SERPENTINE, INSTALLATION or BELT, SERPENTINE, POWER STEERING, INSTALLATION .
Install the fan shroud.
Install the washer/coolant reservoir assembly.
Install air cleaner housing. Refer to BODY, AIR CLEANER, INSTALLATION .
Fill and bleed power steering system. Refer to STANDARD PROCEDURE .
Inspect for leaks.
