U0121-Lost Communication With Anti-Lock Brake Module: Notes

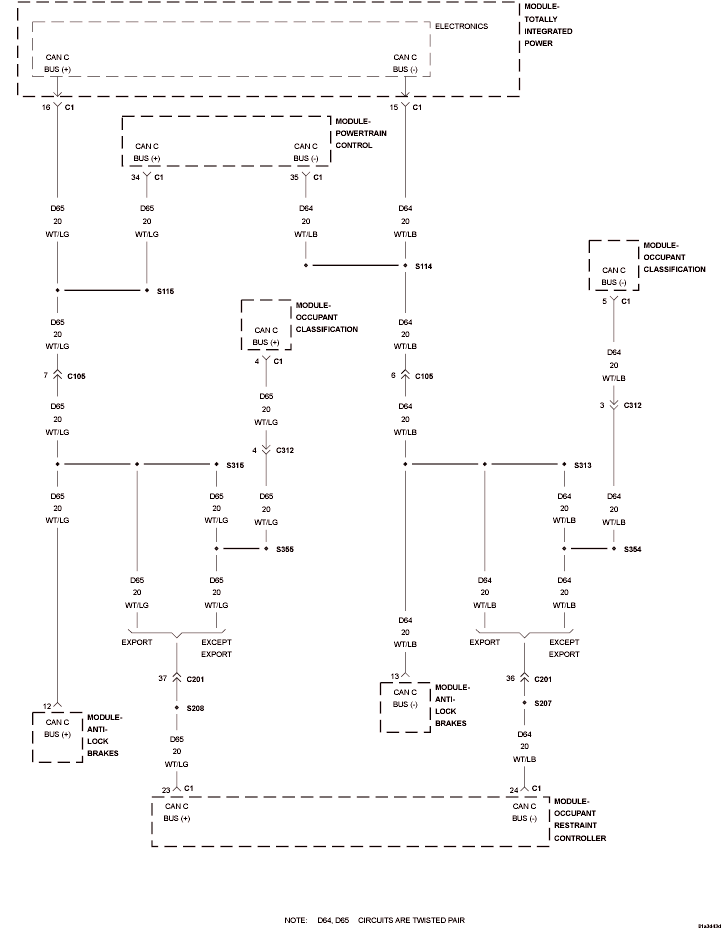

Fig 1: CAN C BUS Circuits Schematic

Courtesy of CHRYSLER LLC

For a complete wiring diagram refer to appropriate SYSTEM WIRING DIAGRAMS article  .
