P2181-Cooling System Performance: Notes

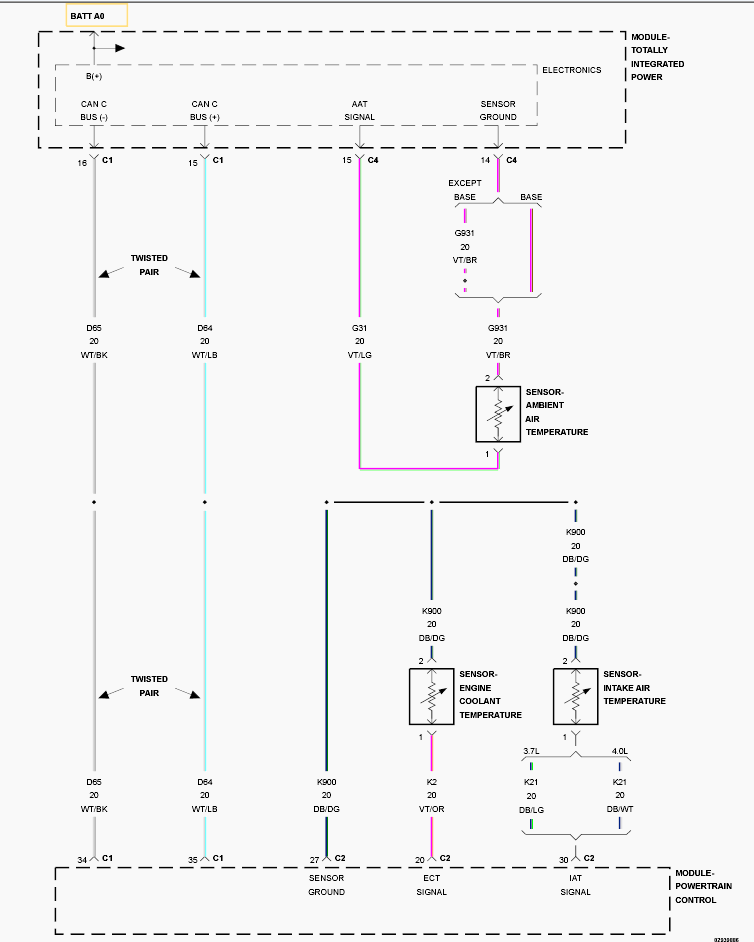

Fig 1: AAT, ECT & IAT Sensors Wiring Diagram

GC0151708

Courtesy of CHRYSLER LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .
