P0685-Auto Shutdown Control Circuit: Notes

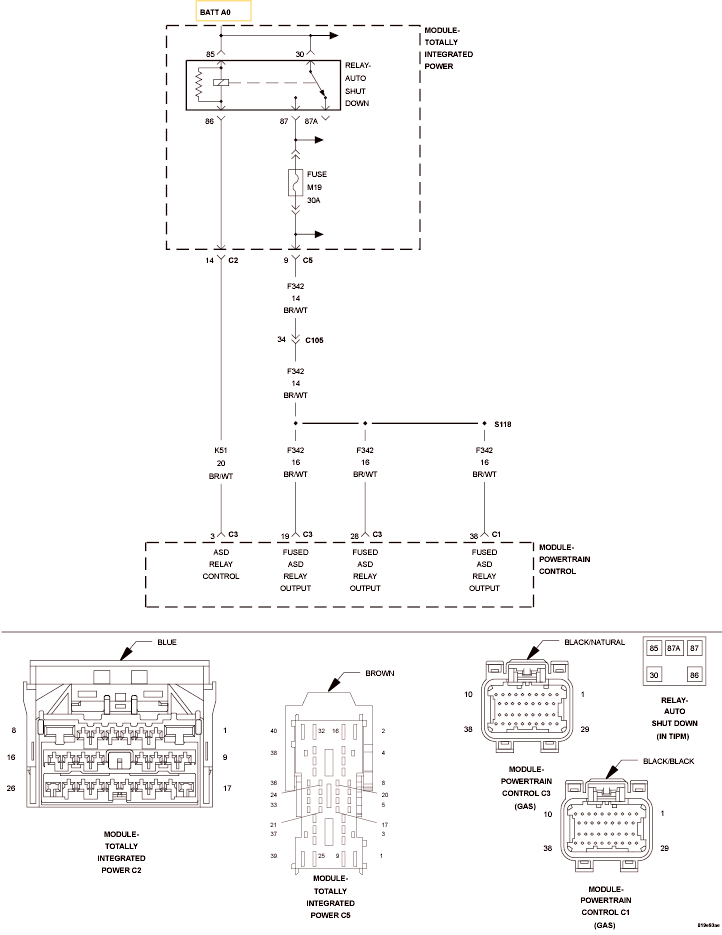

Fig 1: Auto Shut Down Relay Circuit Schematic

Courtesy of CHRYSLER LLC

For a complete wiring diagram refer to appropriate SYSTEM WIRING DIAGRAMS article  .
