2.0L Diesel

Fig 1: Water Pump, New Gasket & Cylinder Head

Courtesy of CHRYSLER LLC

Position the water pump (3) with a new gasket (2) onto the cylinder head (1). Tighten the bolts (4) to 28 N.m (21 ft. lbs.).

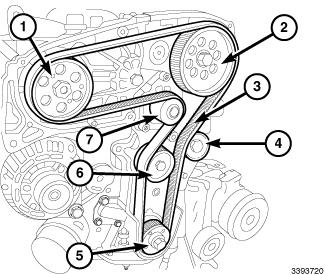

Fig 2: Timing Belt
Courtesy of CHRYSLER LLC
Install the timing belt (3).
Evacuate air and refill cooling system. Refer to PUMP, WATER, STANDARD PROCEDURE .
Connect the negative battery cable.
Check cooling system for leaks. Refer to DIAGNOSIS AND TESTING .
