Housing, Coolant Outlet: Installation: Installation

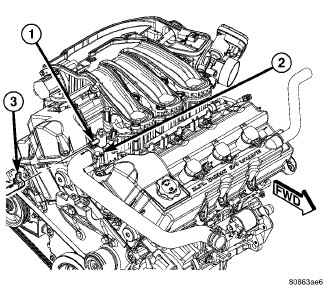

Fig 1: Identifying Coolant Outlet Connector - 2.7L

Courtesy of CHRYSLER LLC

1 - BOLT (2)

2 - BOLT (2)

3 - COOLANT OUTLET CONNECTOR

1. Clean sealing surfaces. Inspect gaskets for tears and cuts. Replace as necessary.
2. Install coolant outlet connector and tighten bolts to 12 N.m (105 in. lbs.).
3. Connect hoses at coolant outlet connector.
4. Connect engine coolant temperature sensor connector.
5. Fill cooling system Refer to STANDARD PROCEDURE .
