2.0L Diesel Engine

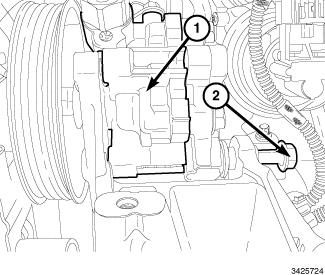

Fig 1: Rear Pump Mounting Bolt & Pump
GC0147982Courtesy of CHRYSLER LLC
  1. Using a lint free towel, wipe clean the open power steering pressure hose end and the power steering pump port. Replace any used O-rings with new. Lubricate the O-ring with clean power steering fluid.
  2. Place the pump in mounting position. Install the rear mounting bolt (2) but do not tighten to specification.
    Fig 2: Power Steering Pump - Diesel
    GC0082524Courtesy of CHRYSLER LLC
  3. Install the two mounting bolts (1) through the pulley (2) openings. Tighten the front and rear mounting bolts to 30 N.m (22 ft. lbs.).

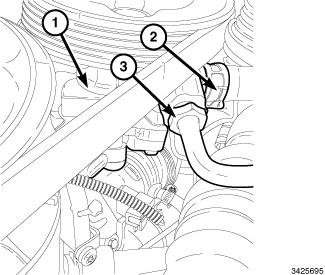

    Fig 3: Pressure Hose Nut, Power Steering Pump & Clamp
    GC0147981Courtesy of CHRYSLER LLC
  4. Install the supply hose (2) at the pump (1) and secure the hose clamp.
  5. Install pressure line tube nut (3) to the pump (1) and tighten to 32 N.m (24 ft. lbs.).

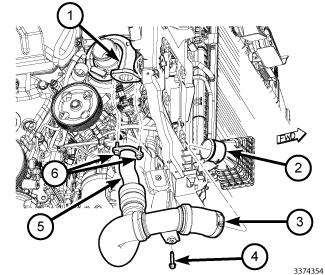

    Fig 4: Clamp, Cooler, Flange Bolts, Air Cooler Tube Support Bolt & Charge Air Cooler Tube
    GC0147853Courtesy of CHRYSLER LLC
  6. Install the A/C compressor. Refer to COMPRESSOR, A/C, INSTALLATION .
  7. Install the charge air cooler tube (5) and connect to the cooler (2).
  8. Install the charge air cooler tube to the turbocharger flange (7). Tighten the bolts to 10 N.m (89 in. lbs.).
  9. Install the support bolt (4) and tighten to 10 N.m (89 in. lbs.).
  10. Tighten the clamp (3) to secure the charge air cooler tube to the cooler (2).

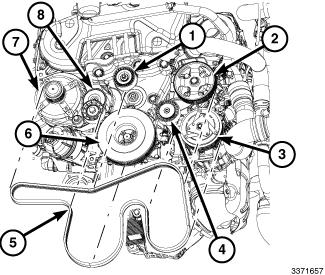

    Fig 5: Belt Tensioner & Accessory Drive Belt
    GC0147834Courtesy of CHRYSLER LLC
    CAUTION:

    Do not let the tensioner arm snap back to the freearm position, severe damage may occur to the tensioner.

    NOTE:

    When installing accessory drive belt, be sure belt is routed around all accessories correctly.

  11. Install belt over all pulleys.
  12. Using a wrench, rotate the cam tensioner (5) until the locking pin can be removed from the tensioner (8).
  13. Check the belt for proper alignment.

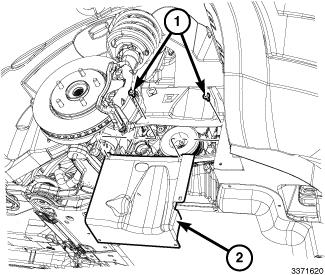

    Fig 6: Lower Splash Belt Shield
    GC0147833Courtesy of CHRYSLER LLC
  14. Install the lower belt splash shield (2).

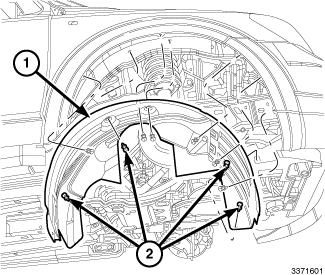

    Fig 7: Inner Fender Splash Shield
    GC0147832Courtesy of CHRYSLER LLC
  15. Install the inner fender splash shield (1).

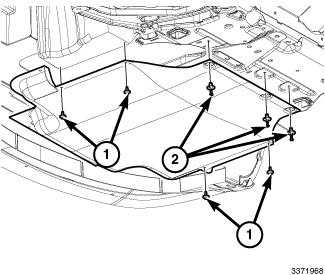

    Fig 8: Engine Belly Pan
    GC0147566Courtesy of CHRYSLER LLC
  16. Install lower engine bellypan.
  17. Install front lower fascia closeout.
  18. Install the right front wheel.
  19. Lower vehicle.

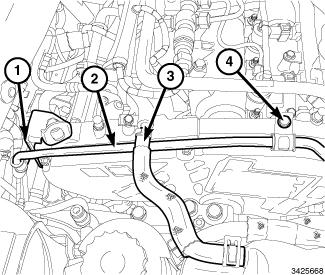

    Fig 9: Power Steering Pressure Line
    GC0147980Courtesy of CHRYSLER LLC
  20. Install the pressure hose routing bracket bolts (1, 4) and tighten to 24 N.m (18 ft. lbs.).
  21. Install the coolant hose (3), if removed.
  22. Fill and bleed the power steering system. Refer to STANDARD PROCEDURE .
  23. Charge refrigerant system. Refer to PLUMBING, FRONT, STANDARD PROCEDURE .
  24. Check for leaks.
  25. Install the engine appearance cover.
  26. Connect negative battery cable.
