P0461-Fuel Level Sensor 1 Performance: Notes

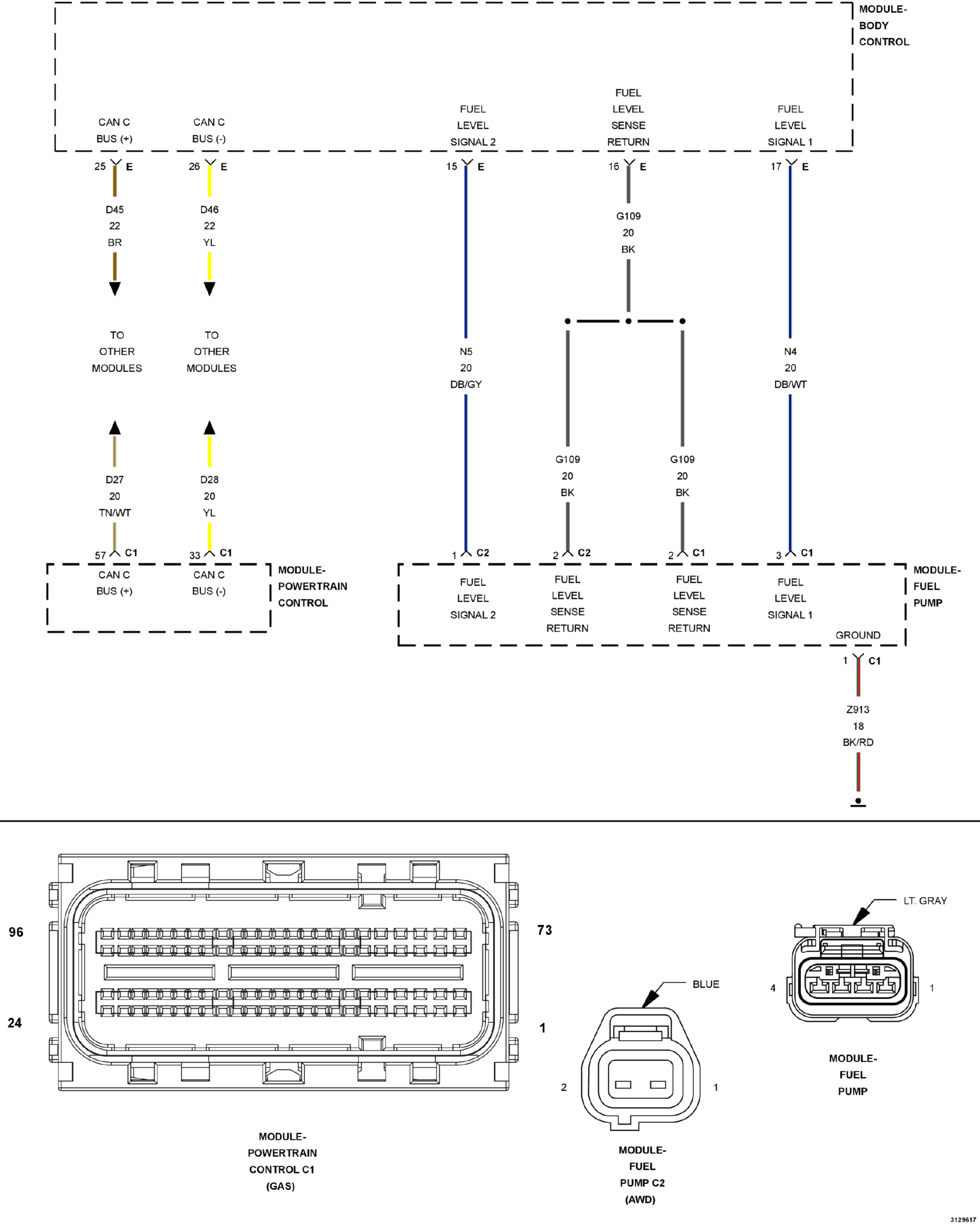

Fig 1: Fuel Level Sensors Circuit Schematic

Courtesy of CHRYSLER LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
