Sensor, Oxygen: Installation: Installation

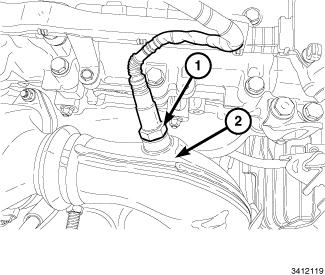

Fig 1: Oxygen Sensor

Courtesy of CHRYSLER LLC

1. Install the oxygen sensor (1). Tighten to 45 N.m (33 ft. lbs.).

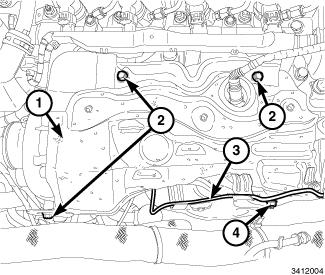

   Fig 2: Mid Upper Turbocharger Heat Shield

   Courtesy of CHRYSLER LLC
2. Install the mid upper turbocharger heat shield (1):
   • Tighten the bolts (2) to 12 N.m (106 in. lbs.).
   • Tighten the nut (4) to 8 N.m (71 in. lbs.).
3. Install the exhaust temperature sensor wire (3) to the lower heat shield (1).

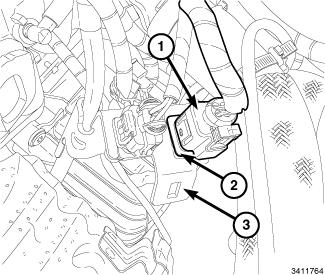

   Fig 3: Oxygen Sensor Wire Harness Connector

   Courtesy of CHRYSLER LLC
4. Install the oxygen sensor wire harness connector pick-tail (2) to support bracket (3) and connect the oxygen sensor wire harness connector (1).

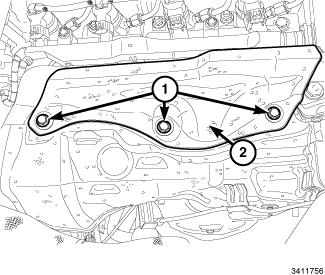

   Fig 4: Upper Turbocharger Heat Shield

   Courtesy of CHRYSLER LLC
5. Install the upper turbocharger heat shield (2). Tighten the bolts (1) to 12 N.m (106 in. lbs.).
   Fig 5: Engine Cover

   Courtesy of CHRYSLER LLC
6. Install the engine cover (1).
7. Connect the negative battery cable.
