Fan, Cooling: Installation: Gas

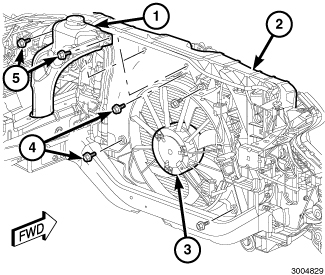

Fig 1: Windshield Washer Reservoir, Core Shroud, Radiator Fan & Mounting Bolts
GC0147050Courtesy of CHRYSLER LLC
  1. Position radiator fan into core support frame (2).
  2. Install mounting bolts (4). Tighten bolts to 35 N.m (25 ft. lbs.).
  3. Install the wiring harness to the lower area of the fan frame.
  4. Connect radiator fan electrical connector.
  5. Install windshield washer reservoir (1).
  6. Install the air intake assembly.
  7. Connect negative battery cable.
