Capacitor, Ignition: Installation

  1. Install the ignition coil capacitor (2) and bolt (3). Tighten the bolt to 10 N.m (89 in. lbs.).
  2. Connect the electrical connector (1).
  3. Connect the negative battery cable and tighten nut to 5 N.m (45 in. lbs.).

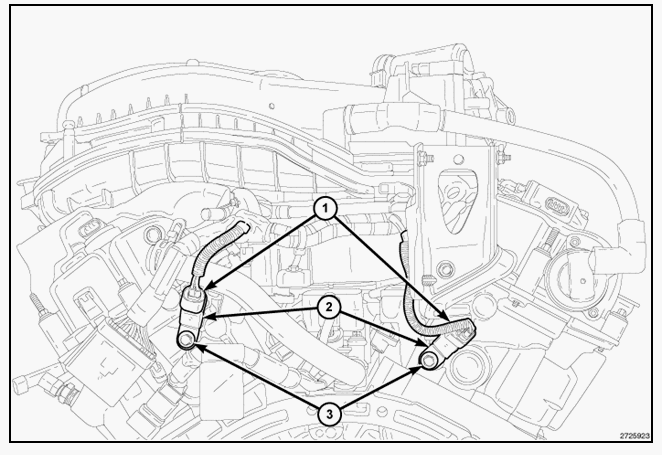

Fig 1: Electrical Connector, Mounting Bolt & Ignition Capacitor
G00511362Courtesy of CHRYSLER LLC
