P0685-Auto Shutdown Relay Control Circuit: Notes

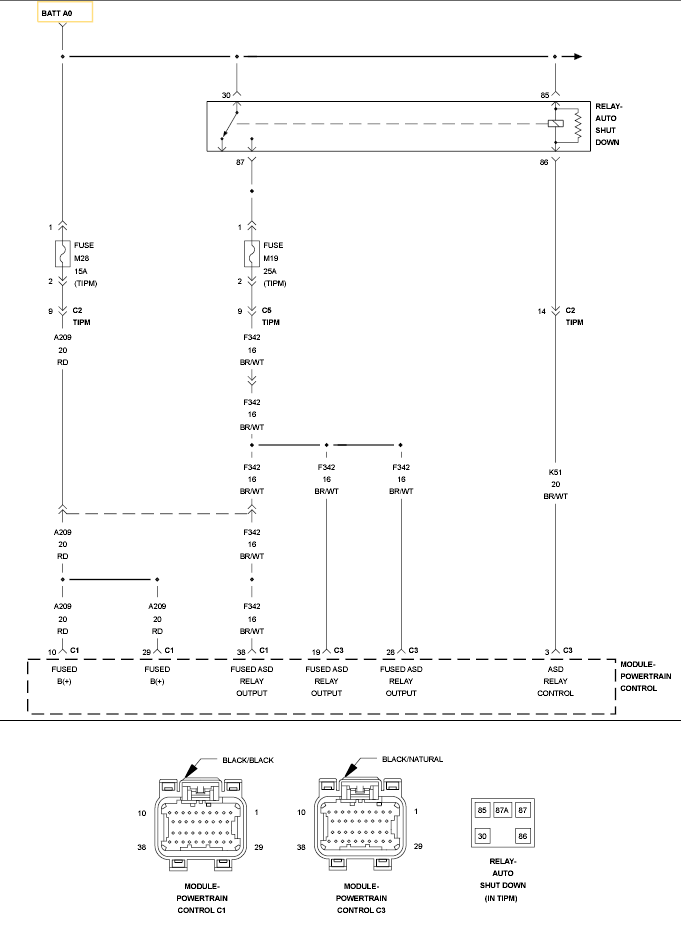

Fig 1: Auto Shutdown Relay Control Circuit Schematic

Courtesy of CHRYSLER LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
