P0571-Brake Switch 1 Performance: Notes

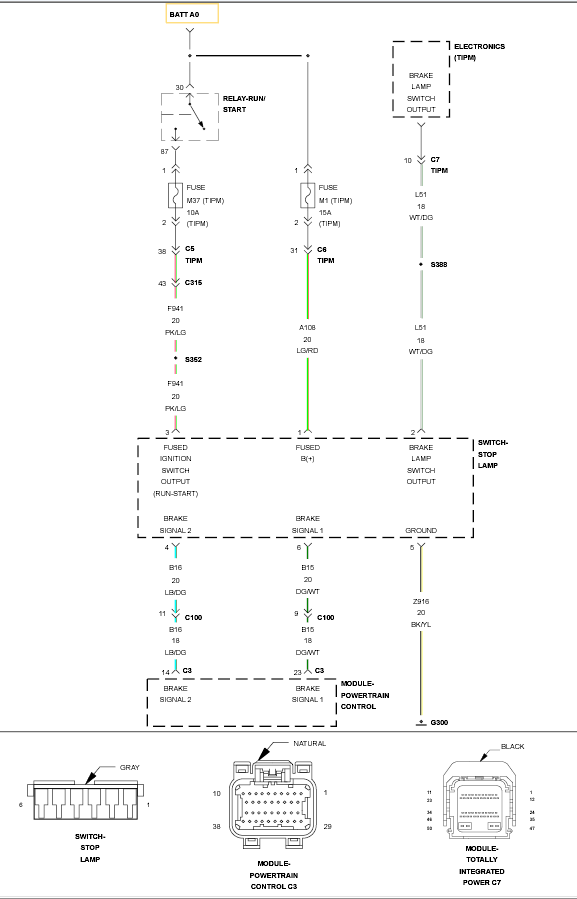

Fig 1: Brake Pedal Switch Wiring Diagram

GC0151512

Courtesy of CHRYSLER LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .
